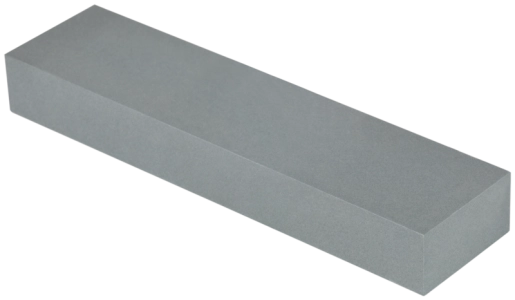

Ceramic and resin-bonded jointing stones

for tungsten carbide and HSS

  • Cooler grinding finish
  • Good profiling properties
Developed for:
See more

Product variants

  • Shape

  • Dimensions

  • Specification

  • Shape
  • Type number
  • Dimensions
  • Mounting
  • Specification
  • Delivery unit
9030
  • 775476
  • 12 x 32
  • C 280 J5 V18
  • 10
54SCH
  • 351654
  • 20 x 15 x 60
  • C 320 -55 V18
  • 10
54SCHP
  • 917288
  • 60 x 15 x 160
  • 454A 500 D2 B22
  • 1
90B
  • 34020398
  • 60 x 15 x 160
  • 55AC 500 D4 B22
  • 1

Product information

Description

To achieve the highest planing quality, micro-size planer heads are levelled with jointing stones. Products from Tyrolit achieve optimum dressing effects. It is possible to level HSS and tungsten carbide planer knives with this product.

Features

  • Cool grinding:

    The specially tailored grit size and bond hardness enable the perfect dressing effect to be achieved.

  • Good profiling:

    Pre-profiling of the jointing stones is required for jointing moulding knives.

Applications

  • For levelling planer heads made from tungsten carbide and HSS

Abrasive Grain

  • Conventional (A+C)

Bond Classification

Vitrified
