Grinding tool for the automatic chain saw saw machine

for steel

  • High profile retention
  • Precise finish
  • Can be customised
Developed for:
See more

Product variants

  • Shape

  • Dimensions

  • Specification

  • Shape
  • Type number
  • Dimensions
  • Mounting
  • Specification
  • Delivery unit
1 F
  • 123716
  • 140 x 3,8 x 12
  • 50A 541 K5A V217
  • 1
  • 740908
  • 140 x 3,2 x 12
  • 88A 54 K5A V217
  • 1

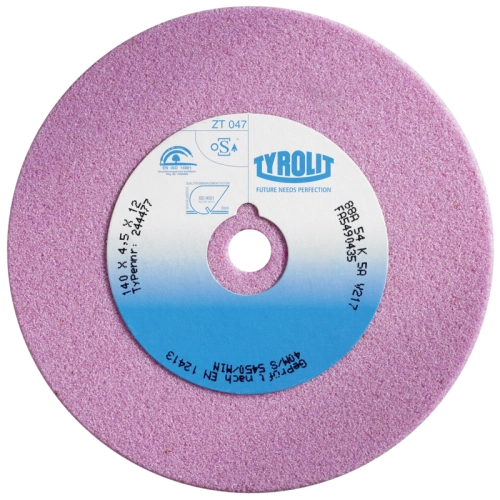

  • 244477
  • 140 x 4,5 x 12
  • 88A 54 K5A V217
  • 1

Product information

Description

With this wheel you receive a precise product that will significantly increase the lifetimes of your chain saws. The profile radius of this product corresponds to half the wheel width and is optimally tailored to the tooth base radius. This tool is suited to dry grinding with edge profile shape 1F and a 140 mm diameter.

Features

  • High profile retention:

    Due to its composition this wheel boasts high profile retention and cool grinding properties.

  • Precise finish:

    Due to the precise machining, the lifetime of your chain saws will be increased compared to conventional filing.

  • Selection based on individual requirements:

    This product is available in the three most common wheel thicknesses: 3.2/3.8/4.5 mm

Applications

  • For sharpening chain saws made from steel

Abrasive Grain

  • Conventional (A+C)

Bond Classification

Vitrified
