Hand-guided sharpening stones

for diamond and CBN grinding wheels

Optimum sharpening process
Good sharpening effect
Can be customised

Developed for:

Product variants

Shape
Dimensions
Specification

Shape
Type number
Dimensions
Mounting
Specification
Delivery unit

90AS

678952
24 x 13 x 100
89A 240 H5A V83
1

678953
24 x 13 x 200
89A 240 H5A V83
10

213930
24 x 13 x 200
89A 240 J7A V17
1

577953
24 x 13 x 200
89A 600 J5A V83
10

845593
24 x 13 x 100
SD33A 120 HH7P VK3
10

845594
24 x 13 x 100
SD33A 120 JJ7P VK3
10

845595
24 x 13 x 100
SD33A 240 JJ7P VK3
10

466470
25 x 25 x 150
89A 220 I5A V217
10

932780
25 x 13 x 200
89A 240 H5A V83
10

33531
25 x 13 x 100
89A 600 -25 V83
1

58385
30 x 13 x 200
SD33A 240 JJ7P VK3
10

112055
50 x 25 x 200
50C 2208 C4 B22
1

391718
50 x 25 x 200
89A 240 -35 V83
1

251584
50 x 25 x 200
89A 600 -25 V83
1

395773
50 x 25 x 200
SD33A 120 HH7P VK3
1

460976
50 x 25 x 200
SD33A 120 JJ7P VK3
1

464290
50 x 25 x 200
SD33A 240 JJ7P VK3
1

Product information

Description

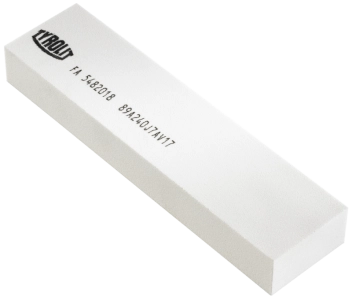

The Tyrolit sharpening sticks sharpen and clean all CBN and diamond grinding wheels, and are used in production and re-sharpening applications. The sticks are made of aluminium oxide and are available in grit sizes 120 - 600. They can be used for hand-operated and mechanical applications.

Features

Selection based on individual requirements:
A product range tailored to specific requirements is available, with grit sizes ranging from 120 to 600 and in various dimensions.
Good sharpening effect:
The specially tailored grit size and grade of the dressing sticks ensures the optimum sharpening process for all diamond and CBN grit sizes.
