Stationary dressing

for aluminium oxide and silicon carbide wheels

Available in three diamond variants
High repeat accuracy
Highest precision

Product variants

Shape
Dimensions
Specification

Shape
Type number
Dimensions
Mounting
Specification
Delivery unit

50AP-

477753
10,5 x 33 x 5
15 - 1,15
B115
1

476859
20,5 x 33 x 5
15 - 1,15
A115
1

477746
20,5 x 33 x 5
15 - 1,4
A140
1

Product information

Description

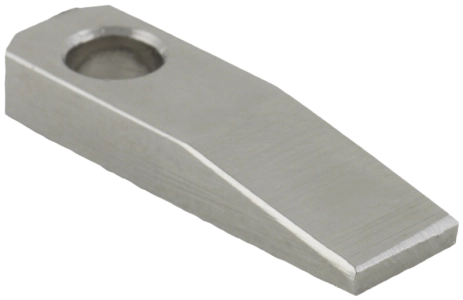

The dressing plates are a high-quality alternative to conventional single-grain diamonds. They are ideal for dressing all aluminium oxide and silicon carbide wheels. They are primarily used for dressing wide wheels and profile wheels with a shallow edge. By using dressing plates it is possible to achieve maximum precision in the dressing process.

Features

Available in three diamond variants:
Multi-grain plate for standard applications, needle plate for demanding requirements, CSS dressing plate for the most exacting requirements.
High level of repeat accuracy:
The precisely defined diamond rods enable maximum precision to be achieved during the dressing process.
